Description

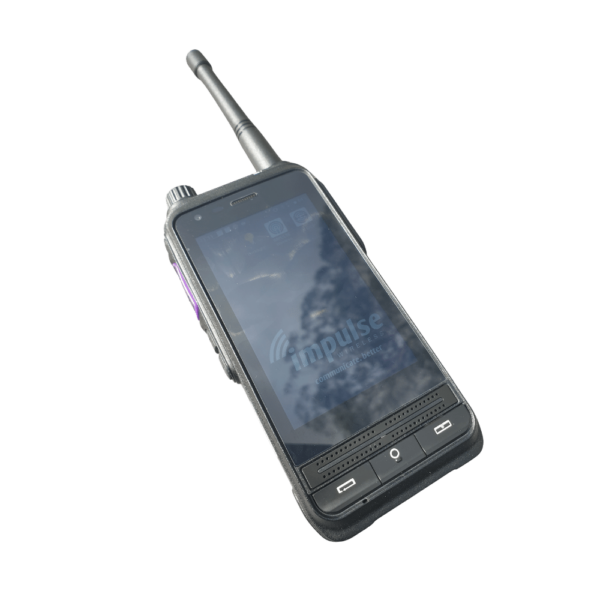

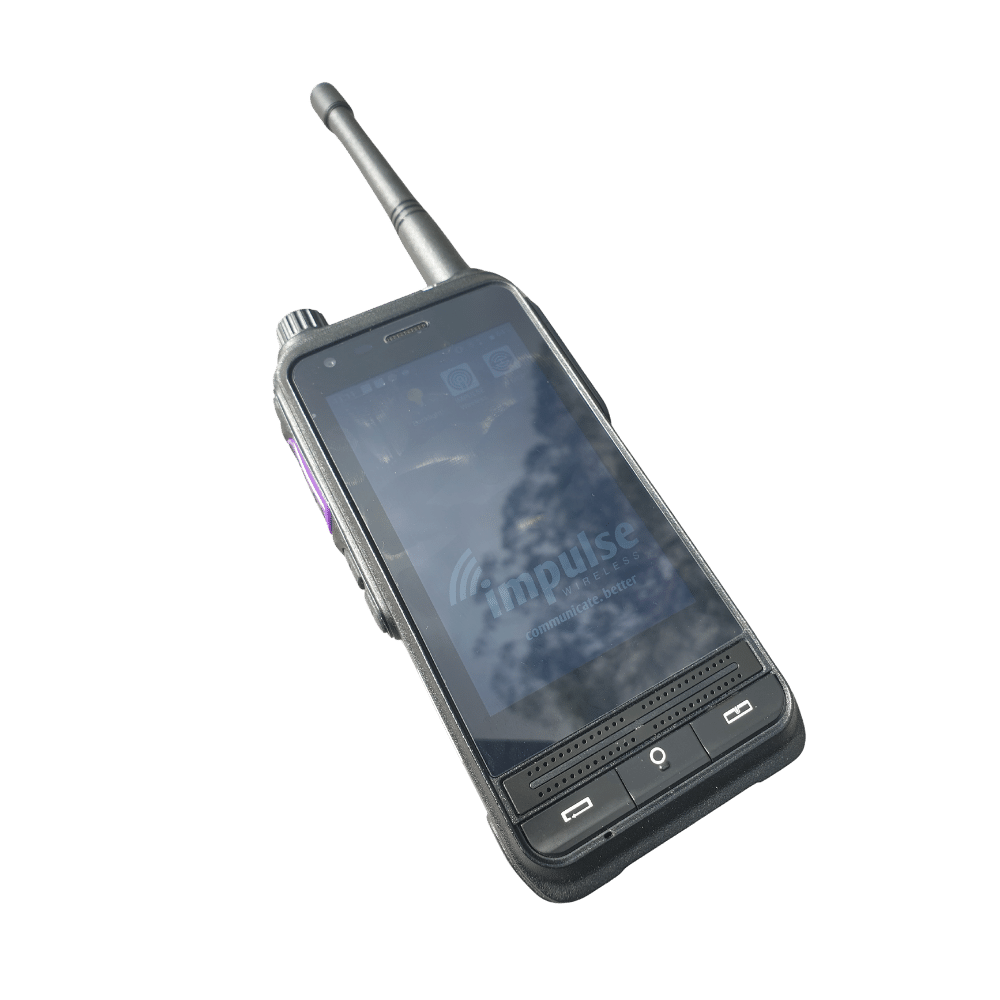

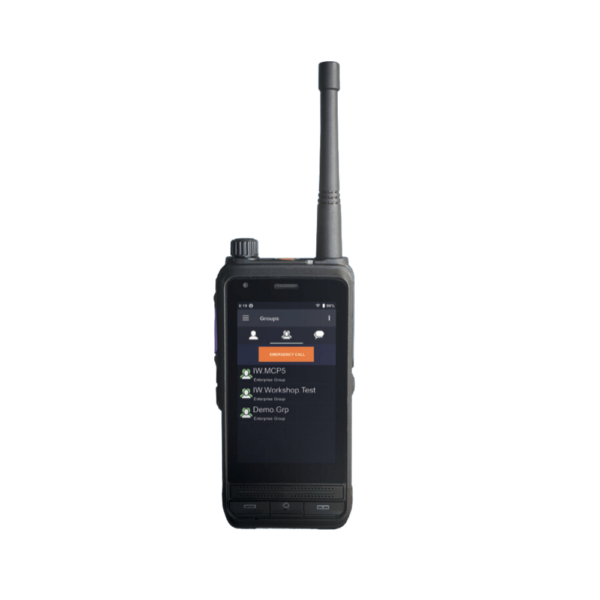

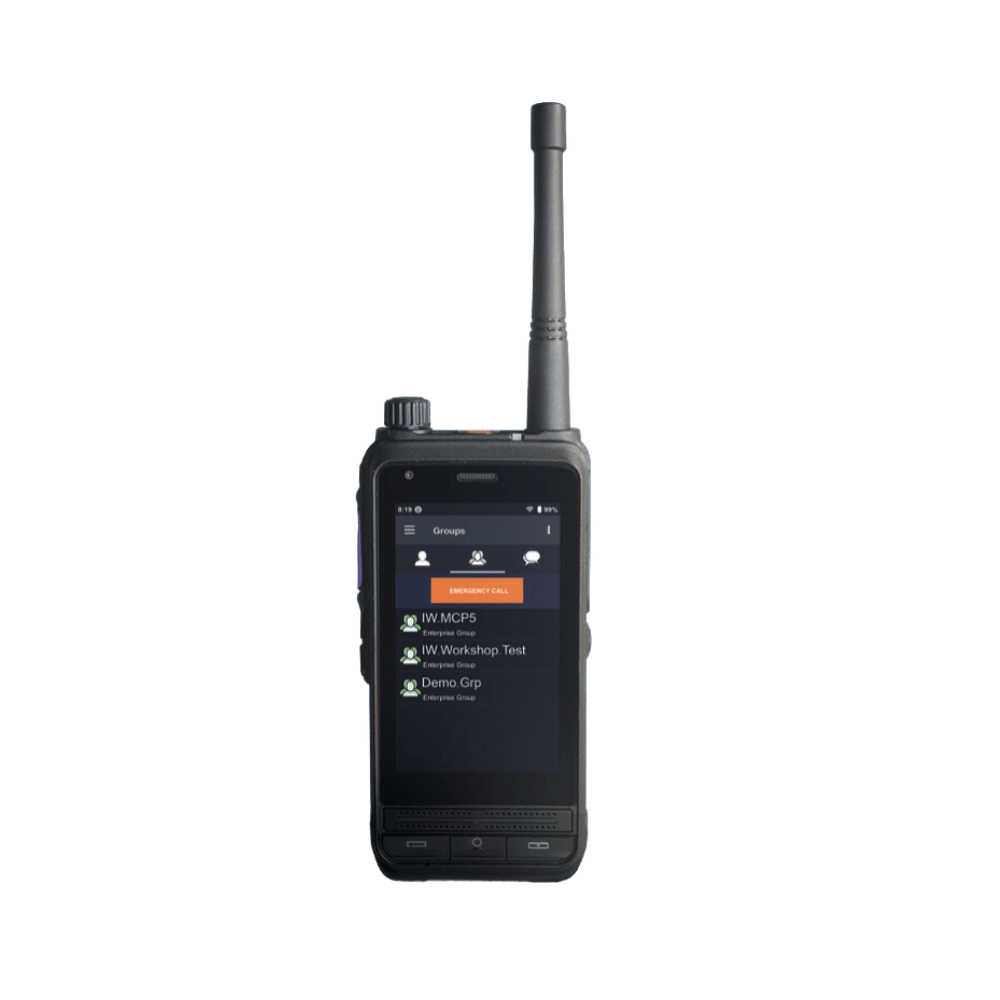

MCP5 Mission Critical Portable Radio (MCP5) DMR UHF and PTT
The IMPULSE Wireless MCP5 delivers an LTE + DMR handheld with autonomous switching and bridging. The MCP5 Mission-Critical Portable handles all the smart stuff of switching networks using our unique MCP service so you don’t have to worry about what networks you can and cannot use, at any time.
Combine your enterprise Android apps with DMR Tier II radio, push-to-talk over LTE, GPS tracking, man-down/lone worker protection, and more. Being an Android-based device enables digitisation and automation using Bluetooth and NFC connectivity.
Investment Protection
The MCP5 Mission Critical Portable Radio (MCP5) DMR UHF and PTT is the perfect device for those teams that need to roam from one site to another where you already have DMR deployed. Extend the life of those investments while enabling nation wide coverage to all your legacy and PTT talk groups.
Product Description:
- Mission-Critical Portable.
- LTE + 400-480MHz DMR.
- Bluetooth
- GPS for Navigation and safety
- Android based device
- Intelligent LTE/DMR switching (requires PTToC and MCP service subscription and RDMS).
- Red SOS button.
- Includes battery, belt clip, UHF antenna.
Features:
| Frequency DMR | UHF: 400-480MHz |
| Frequency Cellular | FDD-LTE: B1 B3 B5 B7 B8 B20 B26 B28A/B TDD-LTE: B38 B39 B40 B41 |
| Wi-Fil | IEEE 802.11 a/b/g/n (2:40 & 5G) |
| NFC | Optional |
| Bluetooth | Bluetooth 4.2 |
| Navigation | GPS/AGPS/GLONASS |
| OS | Android 9.0+ |
| CPU | MT6739 WW 1.5GHz |
| RAM | 2 GB |
| Storage | 16 GB |
| Card Slot | Dual Nano SIM Card + TF Card |
| USB | Type-C |

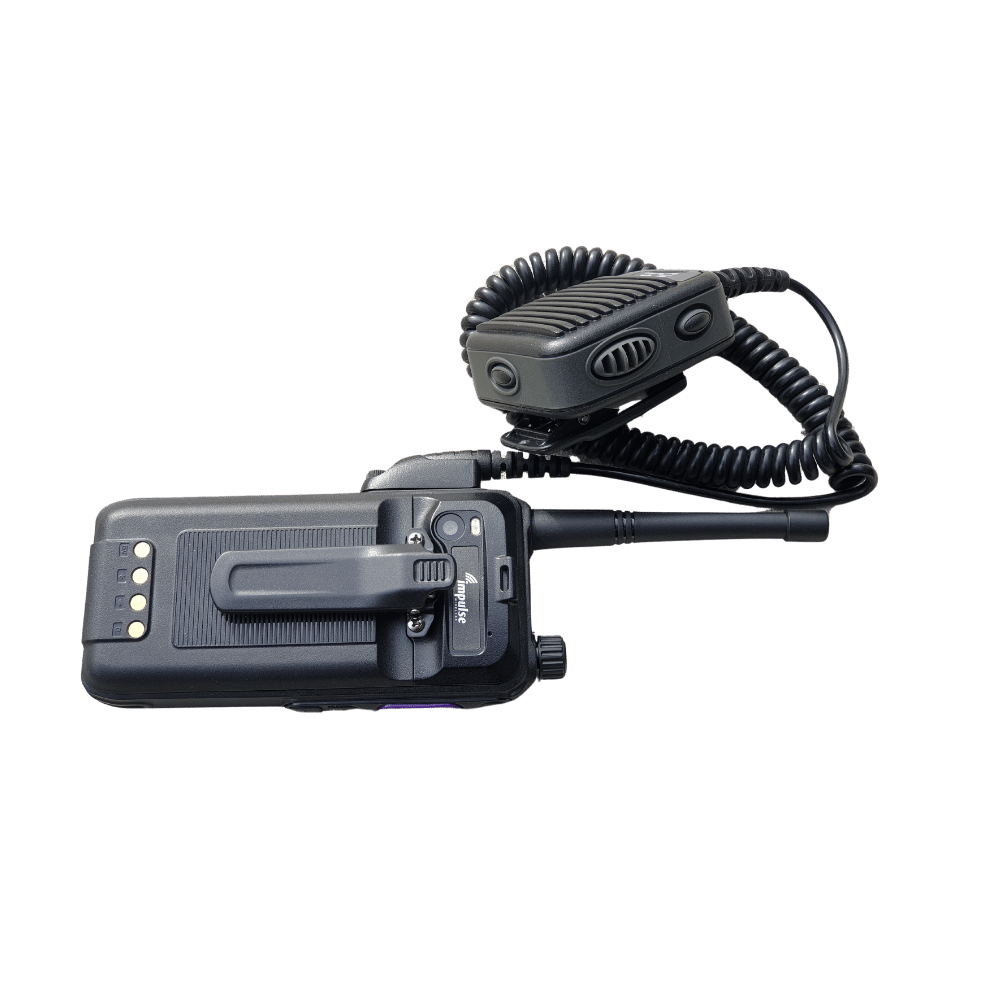

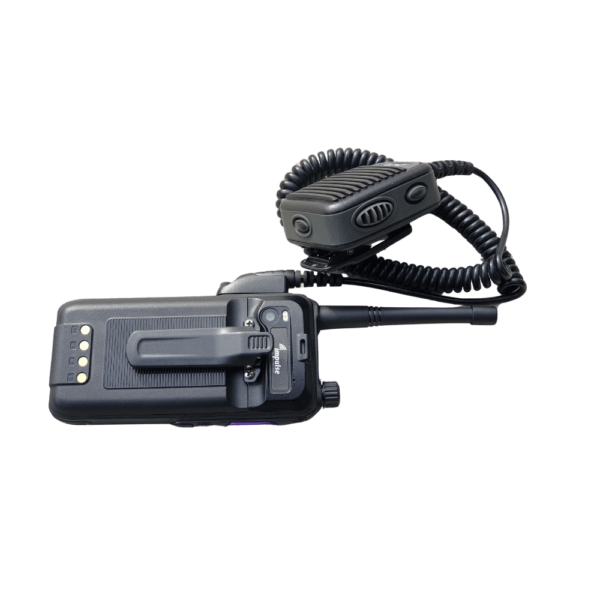

| Interface | Secure Remote Speaker Microphone connection |
| Screen Size | 4.0inch TFT IPS, 400*480 Pixels, Gorilla Glass 3 |
| Camera | Front Camera 5.0MPORear Camera 8.0MP |
| Speaker | 2W, 36mm drivers |
| Microphone | Main MIC + Sub MIC |
| Battery Capacity | 4500mAh |
| Dimension (H*W*D) | | 69mm x 143mm x 26mm |
| Weight | ~3750 |
| Working Temperature | -15°C ~ 60°C |
| Ingress Protection | IP 65 |
