Teltonika FMC003 4G TLE Cat 1

Description

Teltonika FMC003 4G TLE Cat 1

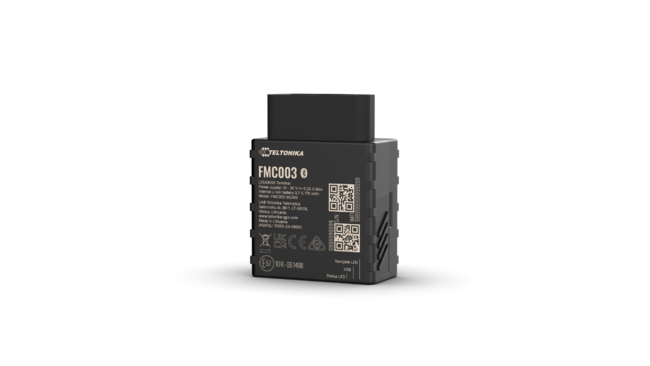

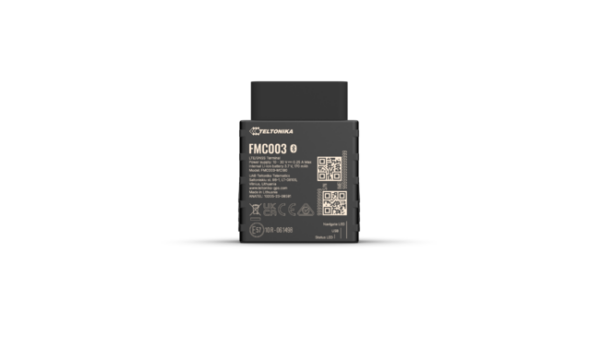

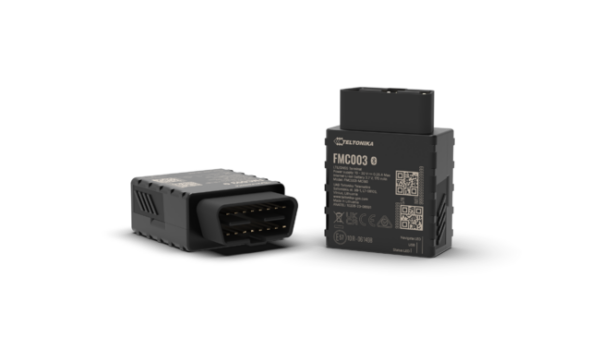

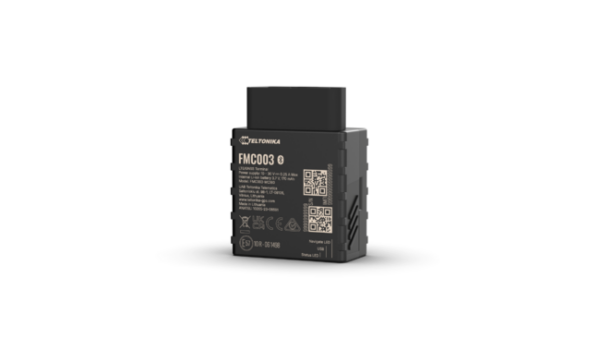

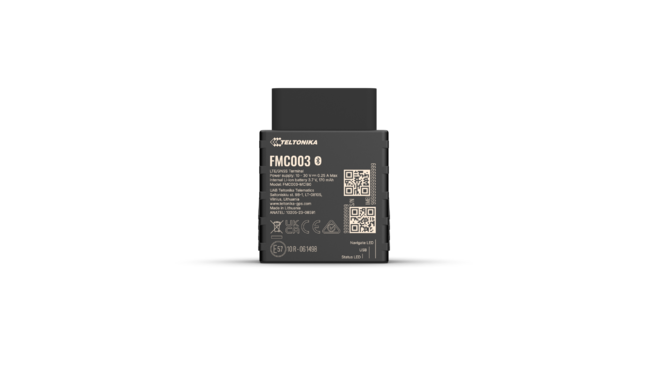

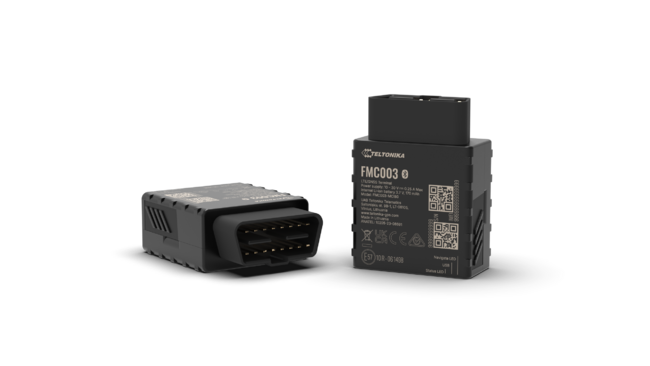

The Teltonika FMC003 4G TLE Cat 1 is a cutting-edge vehicle tracker designed to be easily installed via the OBD-II port, making it a convenient Plug & Play solution for tracking and vehicle management. Additionally, this device enables you to monitor a range of important vehicle parameters, ensuring efficient fleet management and providing valuable data for vehicle performance.

Manuals:

FMC003 – Datasheet

FMC003-Quick Manual

Key Features:

• 4G LTE Connectivity:
  The FMC003 operates on 4G LTE Cat 1 networks, ensuring fast, reliable communication for real-time tracking.

• OBD-II Plug & Play Installation:
  No complicated wiring or professional installation is needed. The device plugs directly into the vehicle’s OBD-II port, typically found under the dashboard, allowing for easy setup and activation. This feature makes the FMC003 an excellent solution for quick deployment.

• Comprehensive Vehicle Monitoring:
  The FMC003 reads various vehicle parameters, including:

  • Odometer readings: Keeps track of mileage, helping businesses monitor vehicle usage.
  • Fuel levels and consumption: Monitors fuel data, enabling efficient fuel management and detecting potential issues.
  • Engine diagnostics: Provides valuable engine health data, including fault codes and other important metrics.
  • Battery status (EVs): For electric vehicles, it monitors the battery health and state of charge.

• Electric Vehicle Support:
  The FMC003 is compatible with over 110 different electric vehicle models, offering specialized functionalities like battery status monitoring.

• Global Coverage:
  The device uses 4G LTE Cat 1, ensuring broad connectivity across various regions. When 4G coverage is not available, it automatically switches to 2G (GSM/GPRS).

• Advanced GNSS (Global Navigation Satellite System):
  The FMC003 supports multiple GNSS systems, including GPS, Galileo, GLONASS, and Beidou, providing accurate positioning even in challenging environments like urban canyons or rural areas.

• Real-time Tracking:
  The device allows for real-time vehicle tracking, giving you a live view of the vehicle’s location and status through a web-based platform or mobile app.

• Remote Vehicle Diagnostics:
  Get detailed data about the vehicle’s health and performance remotely. This includes accessing trouble codes and vehicle parameters to ensure everything is operating smoothly.

Hardware Specifications:

• Dimensions: 67.2 x 49.6 x 25 mm, compact and easy to install.
• Ingress Protection Rating: IP41, protecting against dust and water splashes.
• Power Consumption: 9-36V DC, suitable for various vehicles.
• Antenna: Built-in GPS/GNSS and GSM antennas, no external antennas needed.
• Battery: Backup battery for operation even when the vehicle is off.

Package Contents:

When you purchase the Teltonika FMC003, you’ll receive:

1. FMC003 Device:
   The core vehicle tracking unit that plugs into your vehicle’s OBD-II port.

2. Quick Start Guide:
   A user-friendly manual to guide you through the installation and configuration process.

3. OBD-II Cable/Connector:
   This is the cable you’ll use to connect the device to the vehicle’s OBD-II port.

4. Mounting Accessories (Optional):
   For vehicles where the OBD-II port is not easily accessible, additional mounting accessories might be included to secure the tracker in place.
