Description

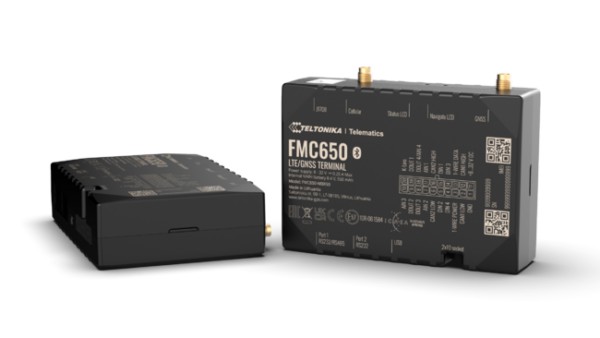

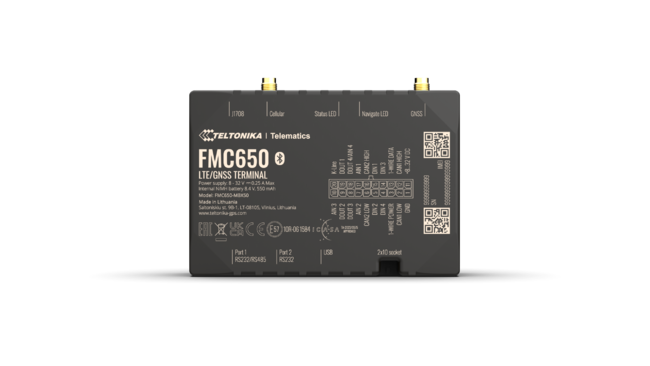

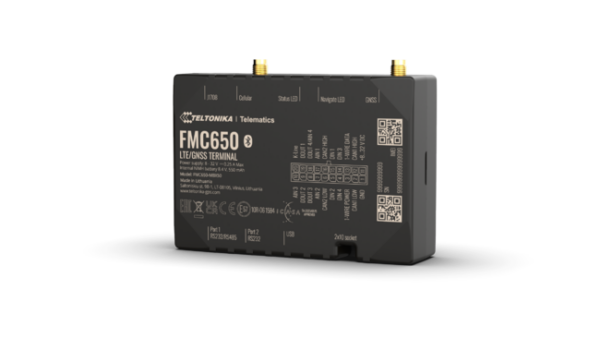

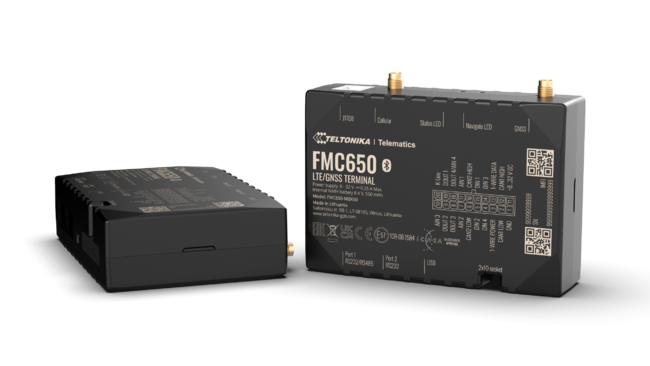

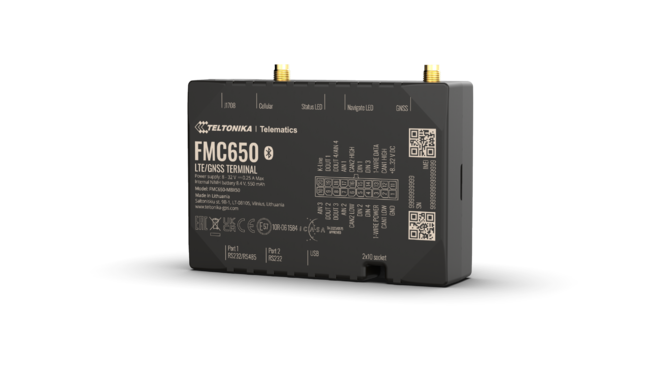

Teltonika FMC650 TCA Approved 4G LTE
The Teltonika FMC650 is an advanced 4G (LTE Cat 1) vehicle tracker with 2G fallback, designed as a successor to the FMC640. It features GNSS and LTE modules with external antennas, ensuring high tracking accuracy, making it ideal for electronic tolling systems.
The device is equipped with a more powerful processor and increased memory for tailored use cases. It supports switchable CAN terminators for networks with multiple nodes and can be powered via USB for easy configuration.
All FMC640 features are retained, including FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data, remote file downloads, RS232/RS485 device compatibility, and Dual-SIM/eSIM support. Applications include logistics, refrigerated transport, agriculture, construction, mining, and emergency services.
The FMC650 is now type-approved by Transport Certification Australia (TCA), ensuring compliance with Australian standards for telematics devices. This certification makes it suitable for use in regulated applications such as electronic tolling and road infrastructure monitoring, further enhancing its reliability and versatility in fleet management.
Manuals:
Package contents
Usually the Teltonika FMC650 TCA Approved 4G LTE device sample is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation. The package contains:
- FMC650 device;
- 4 screws for assembling device
- GPS/GLONASS antenna
- GSM antenna
- USB cable
- Ni-MH Rechargeable battery, 8.4V, 550 mA.
- Input and output power supply cable with 2×10 connection pins.
Basic characteristics
Cellular:
| Technology | Supported bands |
| 2G bands (SLM320) | SLM320-PE2C: B2/B3/B5/B8 |
| SLM320-L16A: B2/B3/B5/B8 | |
| 4G bands (SLM320) | SLM320-PE2C:LTE-FDD:B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 |
| SLM320-L16A:LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40 |
|
| Data transfer | LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD |
| Max 8Mbps (DL)/Max 2Mbps (UL)GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
GNSS features:
- module name: Airoha AG3335MB
- L1 and L5 dual-band GNSS receiver
- -165 dBM sensitivity
- Hot start <1s
- Warm Start < 25s
- Cold start < 35s
- GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS
- Accuracy < 2,5 CEP
Hardware features:
- NXP i.MX RT1064 processor;
- 16 MB internal Flash memory (10 MB is used for record saving);
- External memory card slot;
- Built-in accelerometer;
- Built-in Bluetooth 5.0;
- Internal backup battery included;
Interface:
- Integrated KLINE
- Dual CAN J1939
- J1708 CAN
- RS485 and 2x RS232 support
- 4 Digital Inputs for object status monitoring
- 4 Digital Open-collector Outputs (controlling external relays, LED, buzzers, etc.)
- 4 Analog Inputs
- 1-wire interface
- Ni-Mh 550 mAh internal battery
- MicroSD card
- 2 status LED
- Dimensions: L(104,1mm)xW(76,8mm)xH(31,5mm)
- Configuration and firmware update (via FOTA and USB cable)
- External GSM antenna for higher sensitivity
- External GNSS antenna for higher sensitivity
Special features:
- Fast position fix;
- High Quality track even in high density urban canyon;
- Ultra small case;
- Ready for harsh environment;
- Easy to mount in limited access areas;
- Firmly fasten;
- 2 LED status indication;
- Real time tracking;
- Smart data acquisition based on:
- Time;
- Speed;
- Angle;
- Distance;
- Ignition or any other I/O event;
- Sending acquired data via GPRS;
- GPRS and SMS I/O events;
- Virtual odometer;
- Jamming detection;
- Configurable using Secured SMS Commands;
- 2x SIM card; 1x eSIM;
- Overvoltage protection (compatible with pulse 5a and pulse 5b);
- Reverse polarity protection;
| Description | Voltage | Duration |
|---|---|---|
| Normal operation | +8 … +32 V | Unlimited |
| Protection turns on, device turns off | 34 V | Unlimited |
| Maximum voltage | < 70 V | Unlimited |
| Maximum voltage impulse | 90 V | 5 ms |
