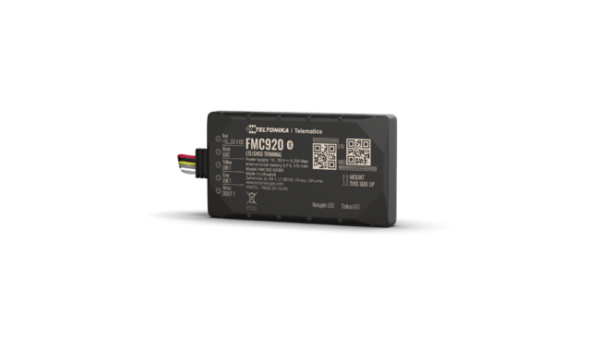

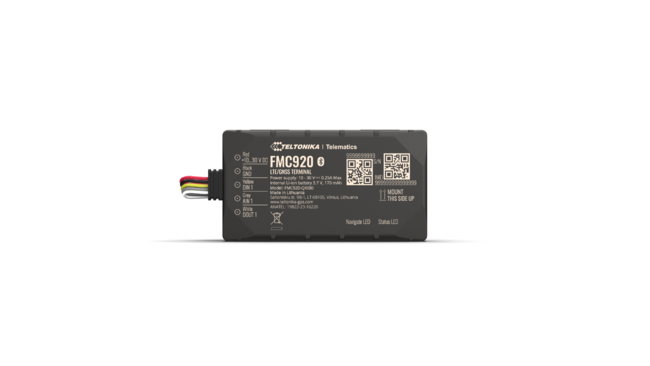

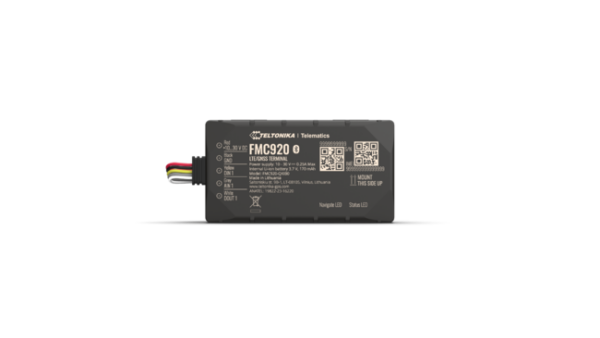

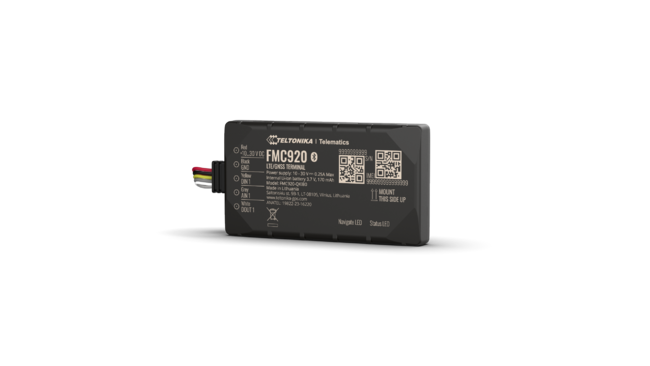

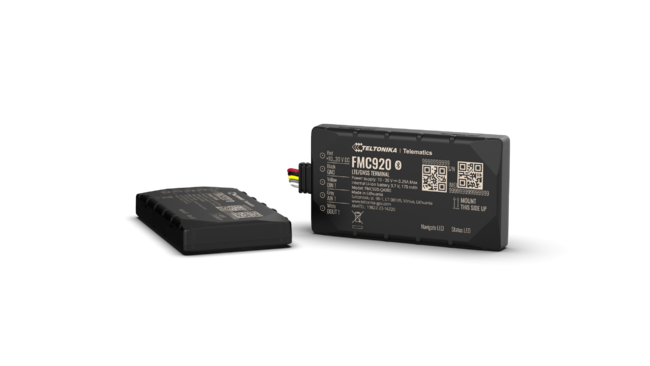

Teltonika FMC920 GPS Tracker

The Teltonika FMC920 GPS Tracker is a compact and versatile GPS tracker designed for fleet management and vehicle tracking. It is ideal for optimizing fuel consumption, improving vehicle lifespan, and enhancing road safety. Its small size makes it easy to install, even in tight spaces.

Key Features:

• Fuel Efficiency: Promotes eco-driving to save fuel and reduce costs.

• Compact Design: Slim profile (12mm height) for discreet installation.

• Remote Engine Blocking: Provides added security with remote immobilization.

• Bluetooth Connectivity: Connects to external devices like beacons and sensors for monitoring temperature, humidity, and movement.

Technical Specifications:

• Technology: LTE Cat 1/GSM/GPRS/GNSS/Bluetooth LE

• GNSS Support: GPS, GLONASS, Galileo, Beidou, SBAS, QZSS

• Position Accuracy: Less than 2.5 meters

• Connectivity: Supports 2G and 4G LTE bands for reliable data transfer

• Power Supply: Operates on 10–30 V DC with overvoltage and reverse polarity protection

• Internal Battery: Backup battery with 170 mAh capacity

• Bluetooth Version: 4.0 + LE for connecting external peripherals

• Dimensions: 79 x 43 x 12 mm

• Weight: 54 grams

• Operating Temperature Range: -40°C to +85°C

Manuals & Diagrams:

Data Sheet

User Manual

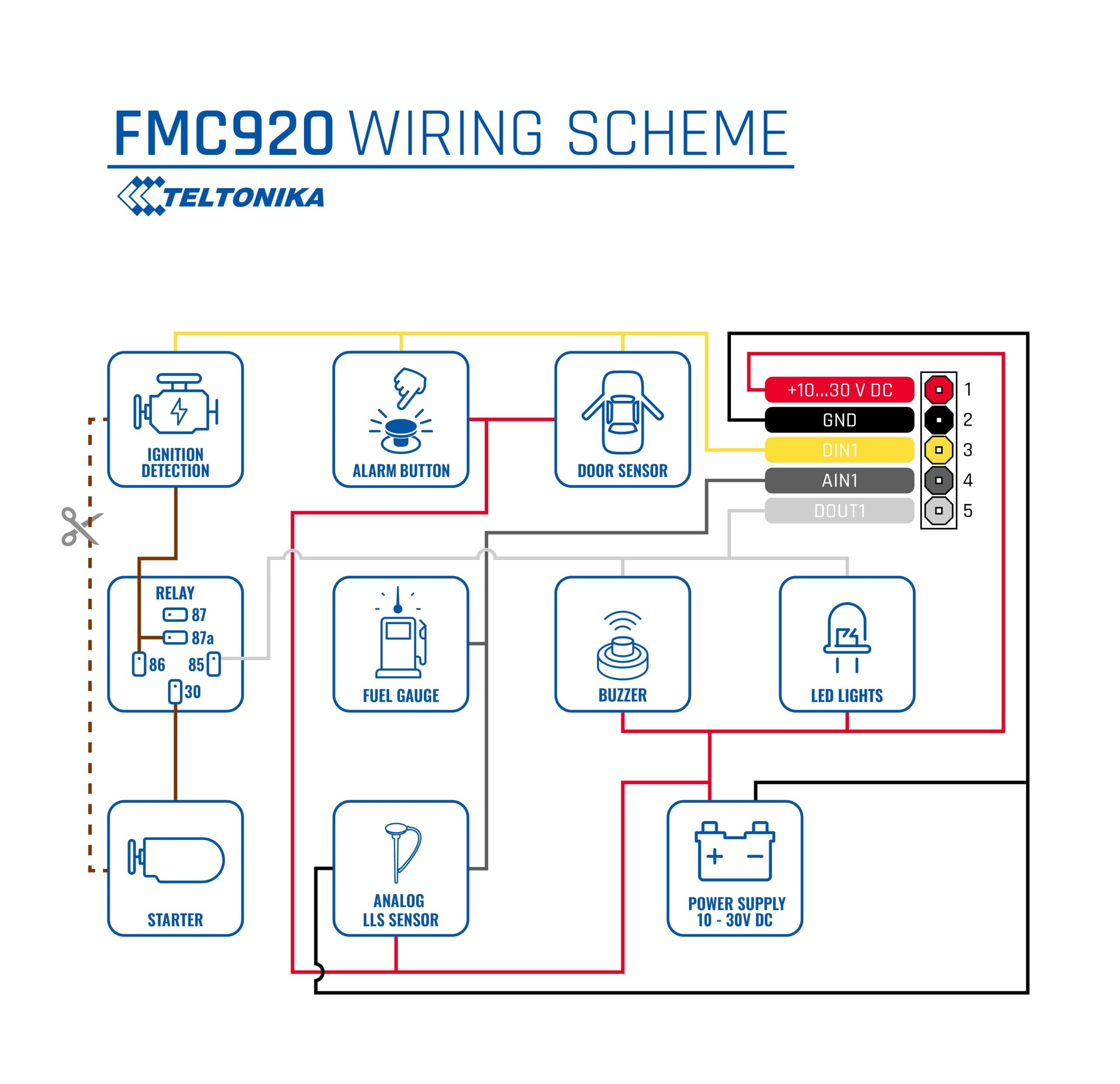

Wiring Diagrams

Advanced Features:

The FMC920 includes green driving mode to encourage eco-friendly behavior, over-speeding detection, crash detection, towing alerts, remote geofencing (manual or automatic), excessive idling detection to save fuel, and sleep modes to conserve power when idle.

Configuration Options:

The device can be configured via USB or Bluetooth using Teltonika’s software tools. Firmware updates are also supported remotely.

Additional Benefits:

The FMC920 supports global connectivity, making it suitable for international use. It is built with high-quality components for reliable operation even in extreme conditions.

The Teltonika FMC920 is an excellent choice for fleet managers looking to improve efficiency, reduce costs, and ensure vehicle security.
