Teltonika FMM150 4G LTE Cat M1 GPS Tracker

Description

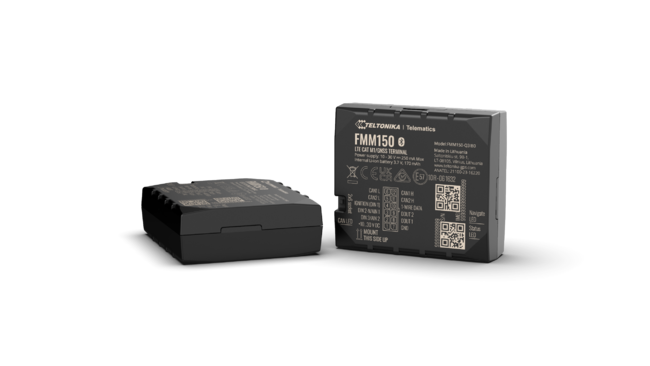

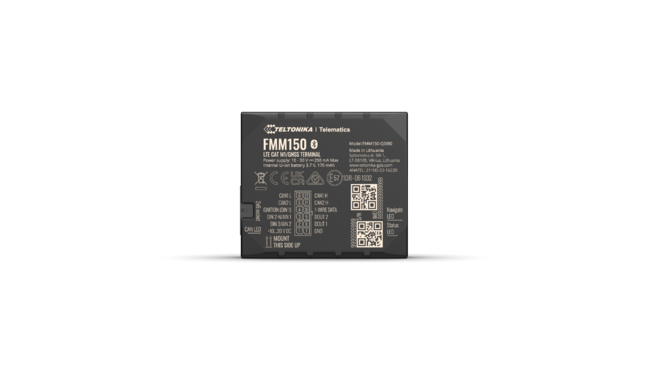

Teltonika FMM150 4G LTE Cat M1 GPS Tracker

The FMM150 is a state-of-the-art 4G LTE Cat M1 GPS tracker designed for comprehensive vehicle monitoring and fleet management. It combines GNSS and GSM connectivity with an integrated CAN data processor, enabling extensive data collection from various vehicle types, including light and electric vehicles, trucks, buses, and special machinery.

Manuals:

Datasheet

Quick Manual

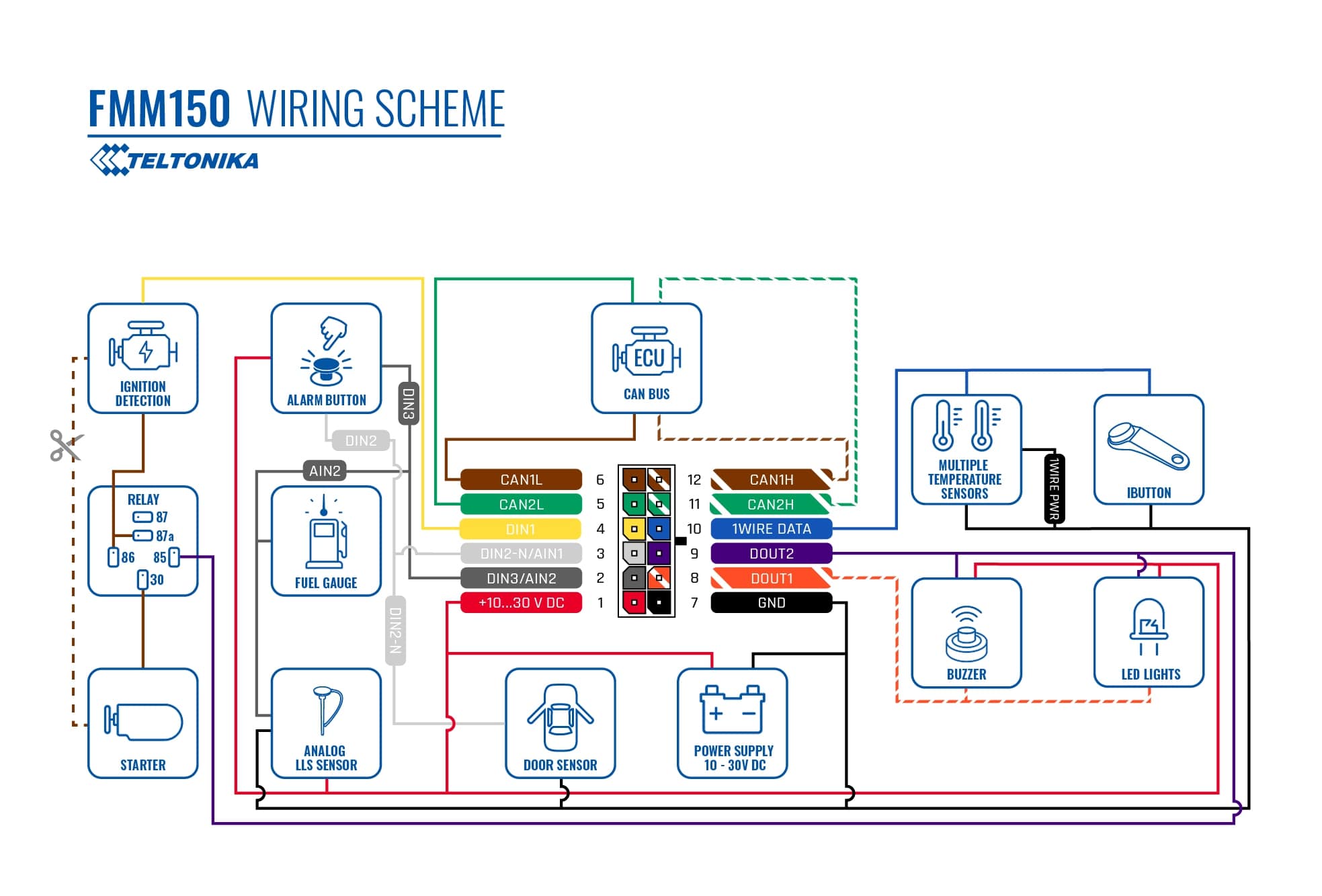

Wiring Diagrams

Key Features:

• Global Connectivity: Supports 4G LTE Cat M1 with fallback to 2G (GSM), ensuring reliable data transmission across diverse regions.
• Multi-GNSS Support: Compatible with GPS, GLONASS, Galileo, Beidou, SBAS, and QZSS, providing accurate positioning with a tracking sensitivity of -165 dBm.
• Integrated CAN Data Processor: Built-in CAN bus data reading chip allows collection of over 40 parameters, including fuel level, engine speed, and vehicle speed, facilitating detailed analysis of vehicle operations and performance optimization.
• Bluetooth® LE Connectivity: Enables wireless connection to external devices such as temperature and humidity sensors, enhancing monitoring capabilities.
• Versatile I/O Options: Equipped with configurable digital, analog, and impulse inputs, along with digital outputs, allowing integration with various vehicle sensors and accessories.
• Remote Engine Blocking: Provides the ability to remotely block the vehicle’s engine, offering an additional layer of security and control.

Technical Specifications:

• Dimensions: 65 x 56.6 x 20.6 mm (L x W x H)
• Weight: 55 g
• Operating Temperature (without battery): -40°C to +85°C
• Input Voltage Range: 10–30 V DC with overvoltage and reverse polarity protection
• Internal Backup Battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
• Power Consumption at 12V (Nominal with no load): < 35 mA
• Bluetooth® Specification: 4.0 + LE
• SIM Card: Micro-SIM or eSIM
• Memory: 128MB internal flash memory
• Ingress Protection Rating: IP41

What’s Included in the Box:

• FMM150 Tracker Device
• Mounting Bracket
• 3M Double-Sided Tape
• Quick Start Guide
• USB Cable for Configuration
• GNSS and LTE Antennas
• SIM Card Holder
