Teltonika FMM920 4G LTE Cat M1

Description

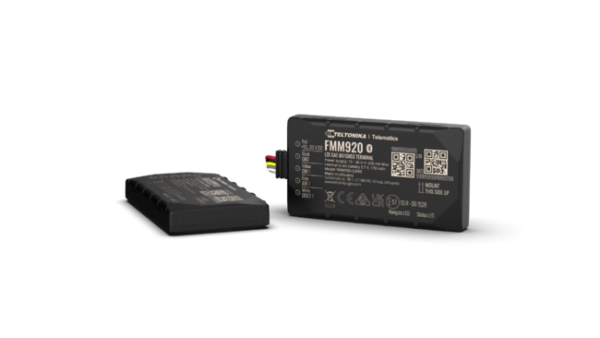

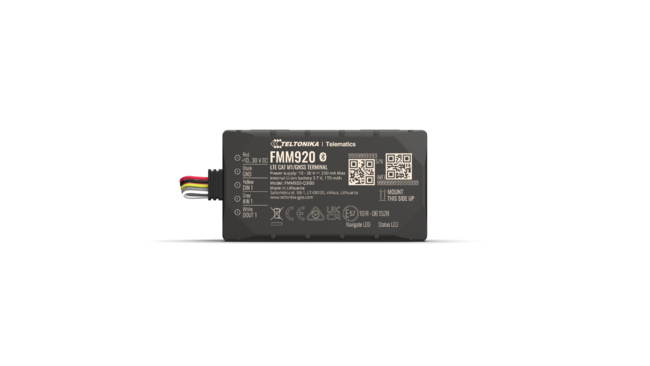

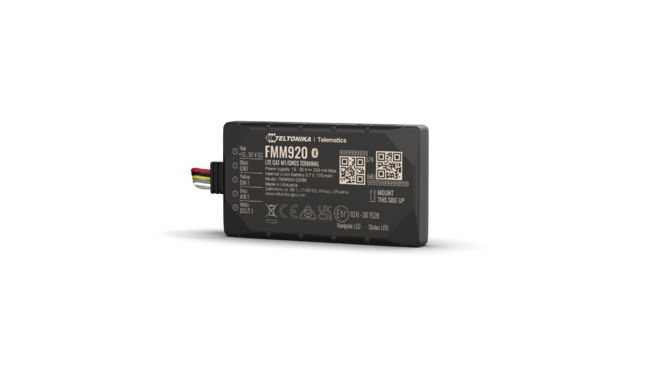

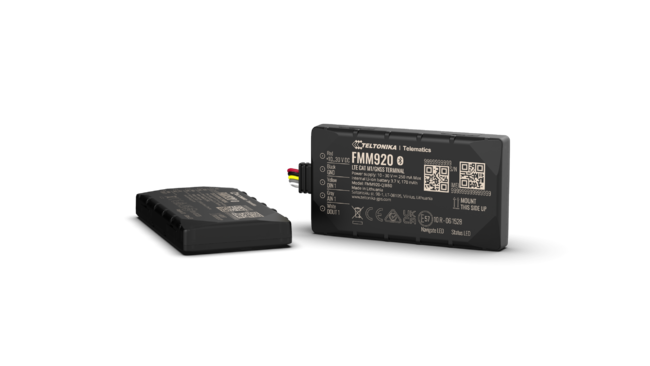

Teltonika FMM920 4G LTE Cat M1

The FMM920 is a compact, high-performance 4G LTE Cat M1 tracker designed for efficient fleet management. It features global connectivity with LTE Cat M1/NB-IoT/GSM support and multiple GNSS systems for precise tracking. With Bluetooth® LE technology, it can connect to external devices such as sensors and beacons, expanding its monitoring capabilities for temperature, humidity, and movement.

The device also supports advanced configurations and remote updates through FOTA and Teltonika Configurator, ensuring seamless management. It’s built to withstand extreme temperatures and environmental conditions, making it a reliable choice for long-term tracking and monitoring.

Manuals:

Datasheet
Quick Manual

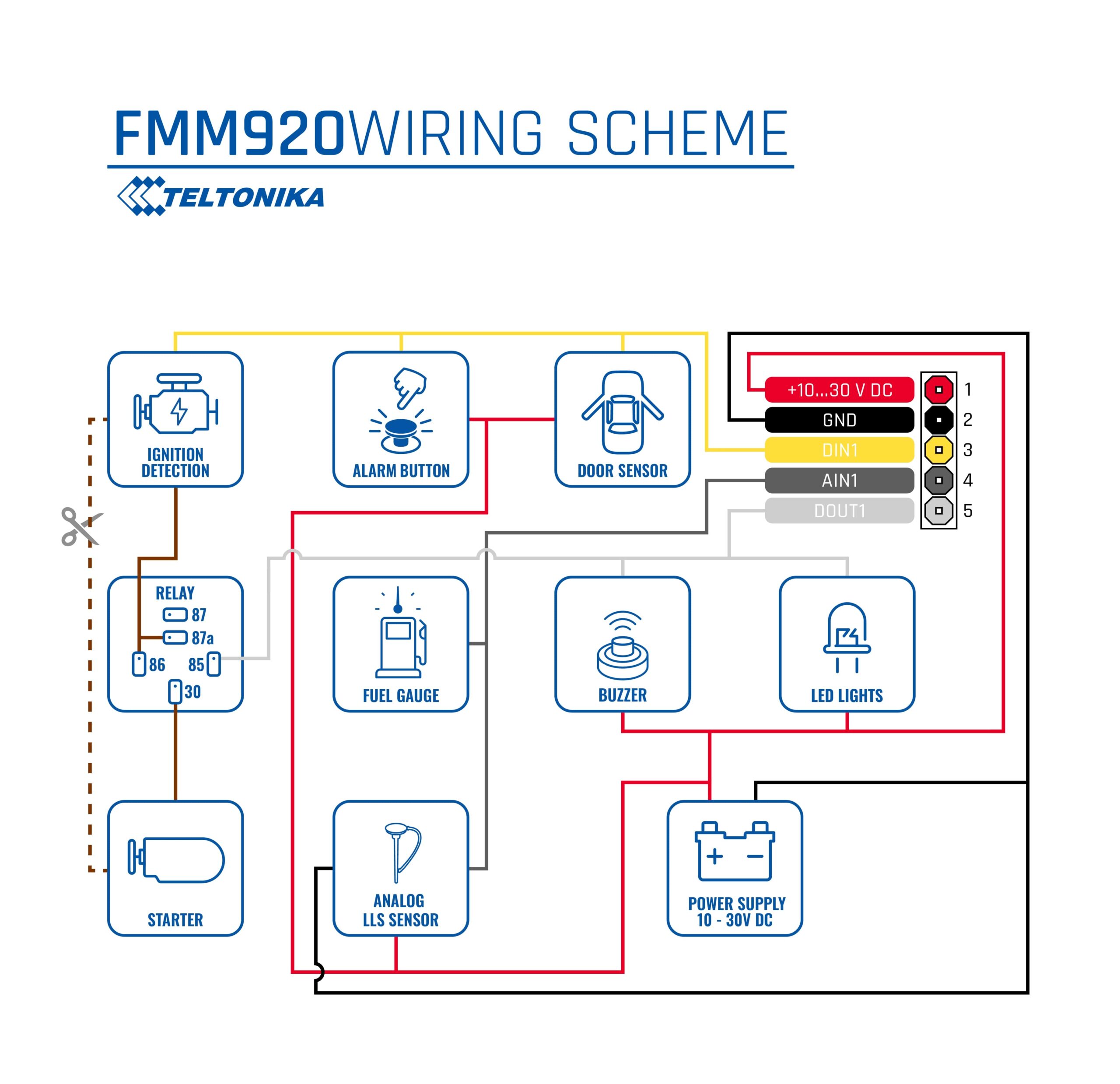

Wiring Diagrams

Key Features:

• Global Connectivity: Supports 4G LTE Cat M1, NB-IoT, and GSM for worldwide coverage.
• Multi-GNSS Support: Compatible with GPS, GLONASS, Galileo, and Beidou for accurate positioning.
• Bluetooth® LE: Connects to external devices like sensors and beacons for added monitoring capabilities.
• Fleet Management: Ideal for logistics, fleet telematics, and asset management.
• Remote Configuration & Updates: Supports FOTA (Firmware Over-The-Air) and Teltonika Configurator for easy remote management.

Key Technical Specifications:

• Dimensions: 79 x 43 x 12 mm
• Weight: 54g
• Operating Temperature: -40°C to +85°C
• Connectivity: LTE Cat M1, NB-IoT, GSM, Bluetooth LE
• GNSS Support: GPS, GLONASS, Galileo, Beidou
• Power Supply: 9-36 V DC (vehicle power)
• Internal Backup Battery: 3.7 V Li-ion battery
• Input/Output Ports: Digital inputs, outputs, and RS232/RS485 communication
• Mounting: Can be easily installed in vehicles, trailers, or assets
• Environmental Protection: IP67 (waterproof and dustproof)

What’s Included in the Box with the Teltonika FMM920 4G LTE Cat M1:

• FMM920 Tracker Device
• Mounting Bracket
• 3M Double-Sided Tape for easy installation
• Quick Start Guide
• USB Cable for Configuration
• Antenna for GPS, LTE, and Bluetooth LE
